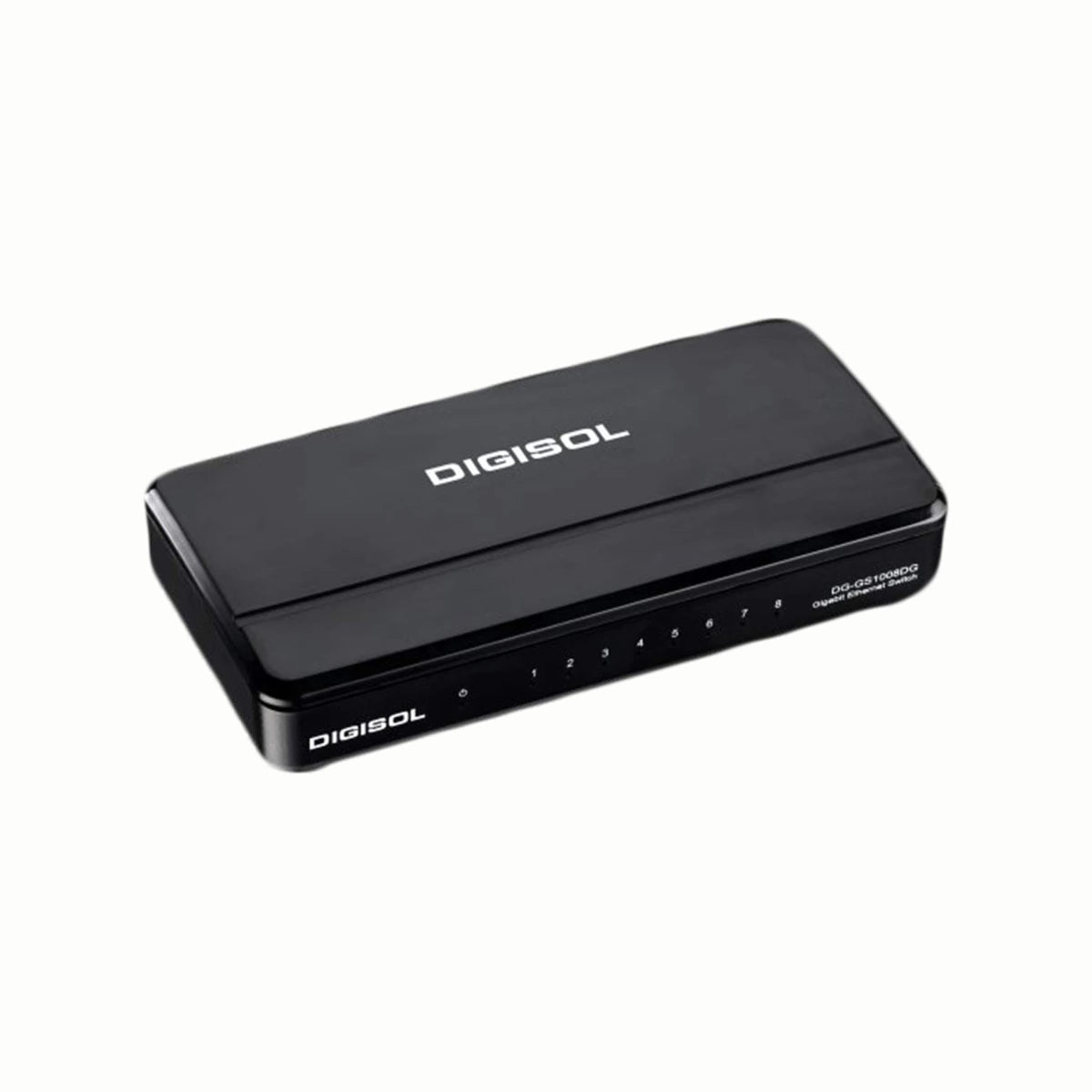

DIGISOL DG-GS1008DG 8-Port Gigabit Ethernet Switch
Expand your wired network with the DIGISOL DG-GS1008DG, an unmanaged Gigabit Ethernet desktop switch designed for homes, offices, and small workgroups. With eight 10/100/1000 Mbps RJ45 ports and a 16 Gbps switching capacity, it provides a convenient way to connect multiple network devices through a single, compact solution.
Automatic MDI/MDI-X detection, store-and-forward switching, and plug-and-play installation help simplify everyday network connectivity without requiring manual switch configuration.
8 Ports
Gigabit RJ45 Connectivity
16 Gbps
Switching Capacity
8K
MAC Address Table
Plug & Play
Simple Installation
Key Features of DIGISOL DG-GS1008DG
Designed for straightforward wired networking, the switch combines Gigabit connectivity with convenient installation and practical desktop operation.
8 Gigabit Ethernet Ports
Connect up to eight compatible Ethernet devices using 10/100/1000 Mbps RJ45 ports for wired network expansion.
16 Gbps Switching Capacity
The 16 Gbps switching capacity supports data handling across connected network devices.
Auto-Negotiation and Auto MDI/MDI-X
Automatically detects supported connection speeds and adjusts the port configuration to simplify connectivity.
Store-and-Forward Switching
Receives and checks Ethernet frames before forwarding them to their destination.
Fanless Desktop Design
The fanless design supports quiet operation in suitable home and office environments.
Simple Plug-and-Play Setup
Connect compatible network devices and the power supply to get started without complex switch configuration.
Technical Specifications
Review the main hardware, networking, power, and environmental specifications of this Gigabit Ethernet switch.
| Brand | DIGISOL |
|---|---|
| Model | DG-GS1008DG |
| Product Type | Gigabit Ethernet Unmanaged Desktop Switch |
| Number of Ports | 8 × RJ45 Ethernet ports |
| Port Speed | 10/100/1000 Mbps per port |
| Switching Capacity | 16 Gbps |
| MAC Address Table | 8K entries |
| Switching Method | Store-and-Forward |
| Port Configuration | Auto-Negotiation and Auto MDI/MDI-X |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Supported Cable Types |
10BASE-T: UTP Category 3, 4 or 5 100BASE-TX: UTP Category 5 or 5e 1000BASE-T: UTP Category 5e or 6 |
| Maximum Cable Length | Up to 100 metres with supported Ethernet cabling |
| LED Indicators | Power and Link/Activity |
| Power Adapter | 5V DC, 1A |
| Dimensions (L × W × H) | 138 × 67.6 × 24.5 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 90%, non-condensing |
Where Can You Use This 8-Port Gigabit Switch?
The DIGISOL DG-GS1008DG is suitable for everyday wired networking requirements where multiple Ethernet connections are needed.
Home Networking
Connect compatible computers, smart TVs, gaming devices, and other Ethernet-enabled equipment.
Office Connectivity
Expand wired connections for desktop computers, printers, and other network devices.
Small Workgroups
Provide additional Ethernet ports for small teams and shared work environments.
Network Expansion
Add more wired connections to an existing compatible Ethernet network.
Easy Installation and Connectivity
Place the switch on a suitable desktop surface, connect your Ethernet-enabled devices using compatible network cables, and attach the specified power adapter. The auto-negotiation and Auto MDI/MDI-X functions help simplify connections, while the unmanaged design eliminates the need for manual switch configuration.
Important: The DG-GS1008DG is an unmanaged
Ethernet switch, not a router. It does not independently
provide Wi-Fi or internet access. Internet connectivity
depends on your existing router or network infrastructure.
Verify the supplied accessories and hardware revision
before publishing your final product listing.
