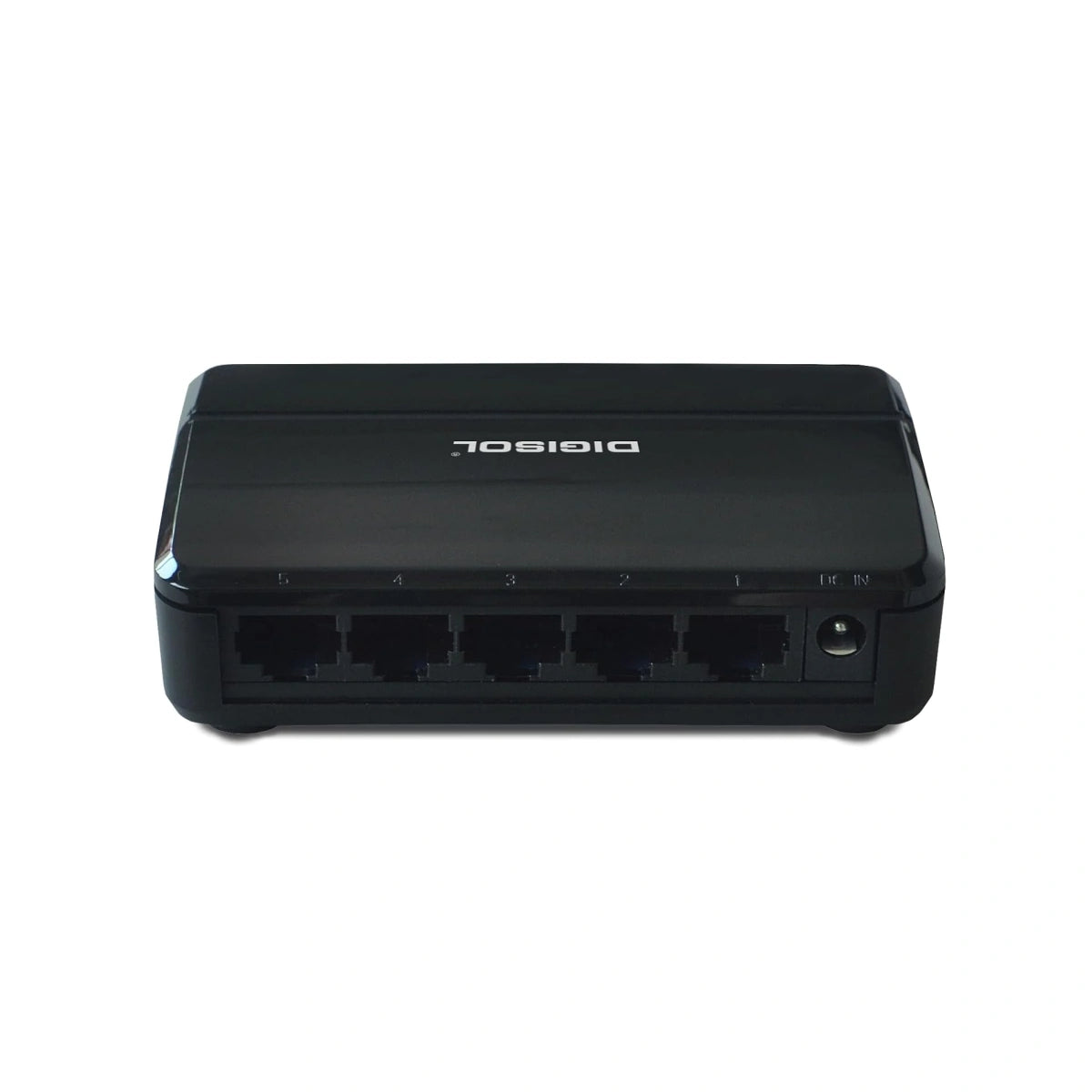

DIGISOL DG-GS1005 5-Port Gigabit Switch
The DIGISOL DG-GS1005 is a 5-port Gigabit Ethernet unmanaged desktop switch designed to expand wired network connectivity at home or in the office. With five 10/100/1000 Mbps RJ-45 ports, automatic MDI/MDI-X detection and plug-and-play installation, it provides a straightforward way to connect multiple Ethernet devices to your local network.
5 Ports Gigabit Ethernet connectivity
1000 Mbps Maximum port link speed
Plug & Play Simple installation without configuration
3.61 W Maximum specified AC input consumption
Product Overview
Designed for everyday wired networking, the DG-GS1005 supports Ethernet devices such as desktop computers, laptops with Ethernet adapters, network printers, compatible routers and network-attached equipment. Its unmanaged design allows connected devices to communicate over the local network without requiring manual switch configuration.
Key Features
Practical networking features help simplify installation and support reliable data transmission across connected Ethernet devices.
Five Gigabit Ethernet Ports
Five RJ-45 ports support 10, 100 and 1000 Mbps Ethernet connections, depending on the connected device and network conditions.
Plug-and-Play Installation
Connect compatible Ethernet devices and power on the switch without requiring a dedicated software configuration process.
Auto MDI/MDI-X Detection
Automatically detects and corrects Ethernet crossover requirements, eliminating the need for a dedicated uplink port.
Store-and-Forward Switching
Uses store-and-forward packet switching to check incoming Ethernet frames before forwarding them to their destinations.
Energy-Efficient Ethernet
Supports IEEE 802.3az Energy Efficient Ethernet features designed to reduce power consumption under suitable network conditions.
LED Status Indicators
Power and port activity indicators help users check the operating status and connectivity of the switch.
Technical Specifications
Review the hardware details and operating specifications of the DIGISOL DG-GS1005 before purchasing.
| Specification | Details |
|---|---|
| Brand | DIGISOL |
| Model Number | DG-GS1005 |
| Product Type | Unmanaged Gigabit Ethernet Desktop Switch |
| Ethernet Ports | 5 × RJ-45 ports |
| Port Speed | 10/100/1000 Mbps |
| MAC Address Table | 2K entries |
| Buffer Memory | 128 KB |
| Jumbo Frame | 9 KB |
| Switching Architecture | Store-and-forward |
| Auto MDI/MDI-X | Supported |
| Duplex Mode | Full and half duplex at 10/100 Mbps; full duplex at 1000 Mbps |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| LED Indicators | 1 × Power LED and 5 × Port Link/Activity LEDs |
| Power Supply | External 5V DC, 1A power supply |
| Maximum AC Input Consumption | 3.61 W |
| Dimensions | 99 × 24.5 × 67 mm |
| Enclosure Material | Plastic |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10%–90%, non-condensing |
| Storage Humidity | 5%–90%, non-condensing |
| Compliance | RoHS compliant |
Why Choose the DIGISOL DG-GS1005?
- Expand wired network connections using five Gigabit Ethernet ports.
- Connect compatible network devices without complicated switch configuration.
- Use automatic MDI/MDI-X detection for convenient Ethernet connectivity.
- Support everyday home-office and small-office networking requirements.
- Benefit from energy-efficient Ethernet features under supported conditions.
Suitable Applications
The DG-GS1005 can be used to expand wired network connectivity in a variety of everyday environments.
Home Networking
Connect computers, smart TVs, printers and other compatible Ethernet-enabled devices.
Small Offices
Add wired network connections for workstations, printers and compatible office equipment.
IT and Networking
Extend local Ethernet connectivity for basic networking installations and equipment setups.
Desktop Workstations
Connect multiple Ethernet devices within a compatible local area network.
Installation and Compatibility
Place the switch on a suitable desktop surface, connect the supplied compatible power adapter, and use Ethernet cables to connect your network devices. For internet access, connect the switch to an existing router or network that provides internet connectivity. The switch expands wired connections but does not independently provide an internet connection.
Product information: Specifications are based on the manufacturer's published DG-GS1005 datasheet. Confirm the included power adapter, warranty terms and supplied accessories with your seller before purchase. Ethernet link speeds depend on the capabilities of the connected devices and cabling.
